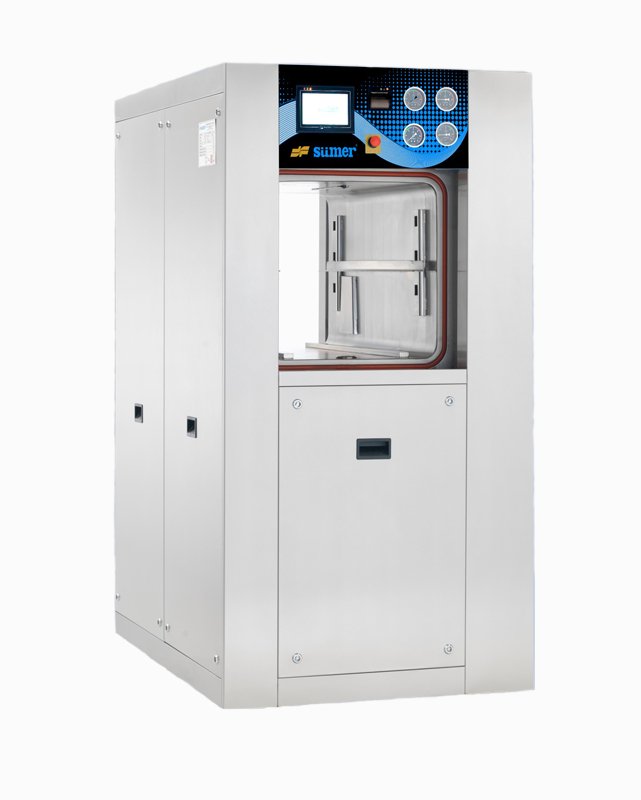

Sumer PRISMATIC STEAM STERILIZERS
SM-2 CKK 200 Double Door

Features

Control System: PLC processor (microprocessor is optional)

Usage Method: Full automatic / button and touch screen

Screen Type: Colour TFT, touch LCD

Screen Dimensions: 7,0” (optionally 10,0”)

Keypad: Touchpad

Printer: 40 characters/line, integrated thermal printer

Communication: RS232/485 Port/USB (Ethernet is optional)

Warning System: Visual, audio and written message warning

Data Storage: 200 cycles

Process Monitoring/Follow Up: In addition to the touch screen, analogue indicators for monitoring cell, jacket, generator, and air pressure

Mobility: Easy driving feature over 4 turning wheels and fixing with adjustable height based on the slope of the ground

Steam Control: Through pneumatic valves

Specifications

Programs

Medical And Surgical Tool (134°C): ~ 60 Min

Textile Materials (134°C): ~ 60 Min

Heavy Materials (134°C): ~ 65 Min

Plastic/Rubber Materials (121°C): ~ 80 Min

Rubber/Glass (125°C): ~ 60 Min

Liquid (121°C): ~ 90 Min

Flash (134°C): ~ 20 Min

Prion (134°C): ~ 60 Min

Bowie & Dick Test: ~ 35 Min

Vacuum Leakage Test: ~ 25 Min

Number Of Programs Entered Preferably: 99

The times of the processes depend on the load and are given approximately. The times cover the entire sterilization process including drying stage with average load.



The programs may be customized depending on the needs of the customer.

Accessories

  • Carriage cart
  • Loading basket
